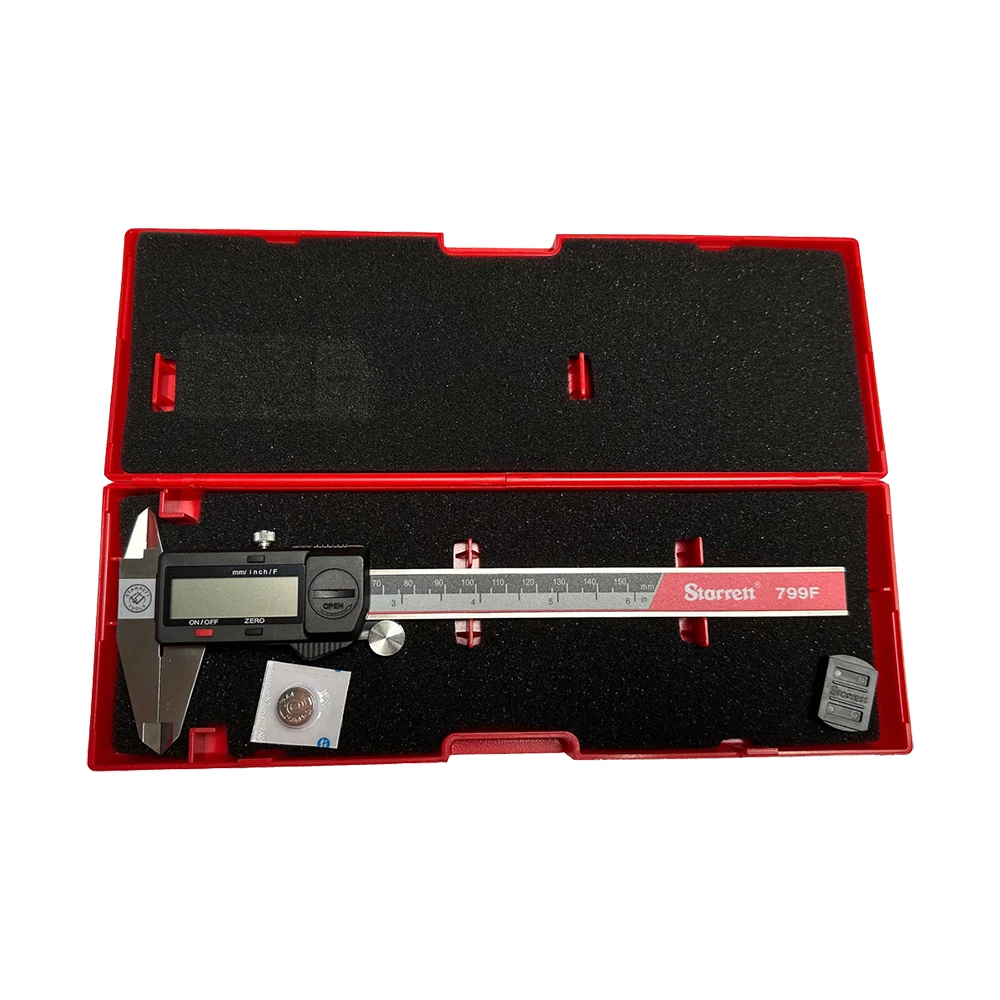

Digital Caliper 150 mm

The EC799 Electronic Caliper is light, comfortable, easy-to-use, and constructed with features that have made Starrett slide calipers the machinist’s first choice for many years. Output now available.

Features

• Lightweight, ergonomic design
• Inch/millimetre conversion reads 0.01mm, .0005”
• Easy access to the single, long-life battery
• Last measuring position retained when shut off
• Hardened stainless steel body for long life
• Fine adjustment thumb wheel
• Lock screw to hold the slide in position
• Resolution is 0.01mm, .0005”
• Zero at any position
• Large easy-to-read LCD
• Automatic shut-off after 30 minutes of non-use
• Linear accuracy meets DIN862
• Integrated depth rod
• Fitted protective case
• Available with and without data output

BRAKE ROTOR CALIPERS ONLY
• Pointed contacts enable a user to accurately locate the deepest pits on a brake rotor, preventing “over machining” when reconditioning
• Has the range that a micrometer cannot achieve in large auto industries
• The long jaws enable deep measurements to achieve a complete profile of a part’s thickness
• Unique anvil configuration that increases reproducibility between users
