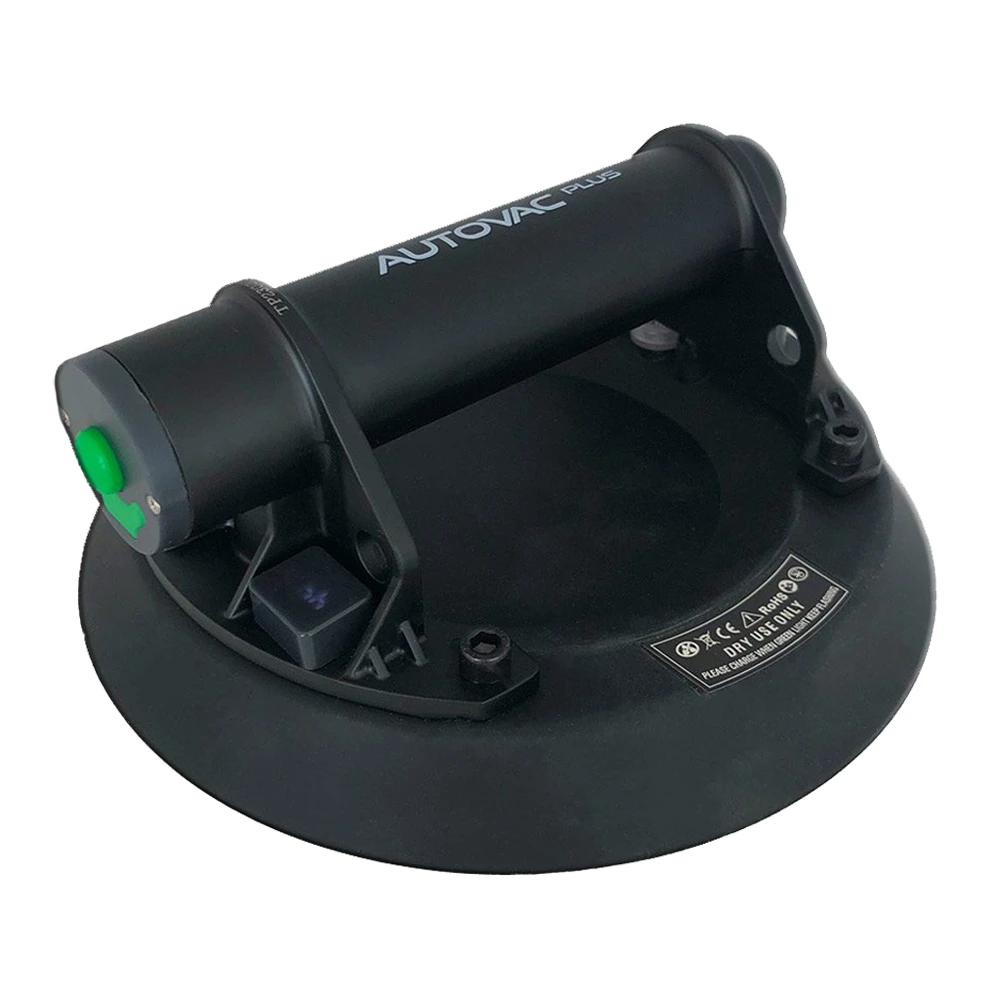

Electric Suction Cup || Autovac Plus

The AUTOVAC is a portable electric pump vacuum intended for lifting glass, ceramic tiles and other objects with a non-porous and smooth surface. The AutoVac has the dimensions of a standard hand pump and can be mounted on existing lifting and transport systems for glass and tiles . Furthermore, the AUTOVAC is equipped with an integrated pressure sensor with an automatic start/stop function. As soon as the underpressure drops to ± -0.5 bar, the pump will automatically switch on, and when sufficient underpressure it will automatically switch off again.

75KG LIFTING CAPACITY

The machine has been tested at 150 kg WLL, with a safety margin of 2:1, the maximum workload is 75 kg and runs on an internal lithium battery, which is rechargeable using the supplied USB C cable.

The machine has been developed in such a way that it has the same mounting holes and dimensions as a normal pump piston and therefore fits all machines and equipment that normally work with a hand pump piston. Consider, for example, glass lifts.

What is included:

Your AUTOVAC is supplied in a black transport case
containing the following accessories:

• Instructions for use
• USB C cable (1m)
• Filter
• Brush



TECHNICAL SPECIFICATIONS

Model	AUTOVAC Plus
Battery	3.7 VDC 5000 Mah Li-ion
Loading time	8-10 hours
Normal usage time (full battery)	48 hours
Non-stop usage time (full battery)	16 hours
Non-stop usage time (full battery)	2 hours (depending on batteries used)
Suction lifter material	Metal
Charger input voltage	100-240 VAC 50/60hz 3.7 VDC 2A
Maximum workload (WLL / SWL)	75 kg
Tested lifting capacity horizontally	75 kg
Tested lifting capacity in parallel	75 kg
L x W x H suitcase	250 x 265 x 100mm
Suction disc diameter	ø 200mm
Net weight (incl. battery)	0.92 Kg
Ambient working temperature	-12 to 49° C
EC Conformity	acc. Machinery directive 2006/42/EC
